Description

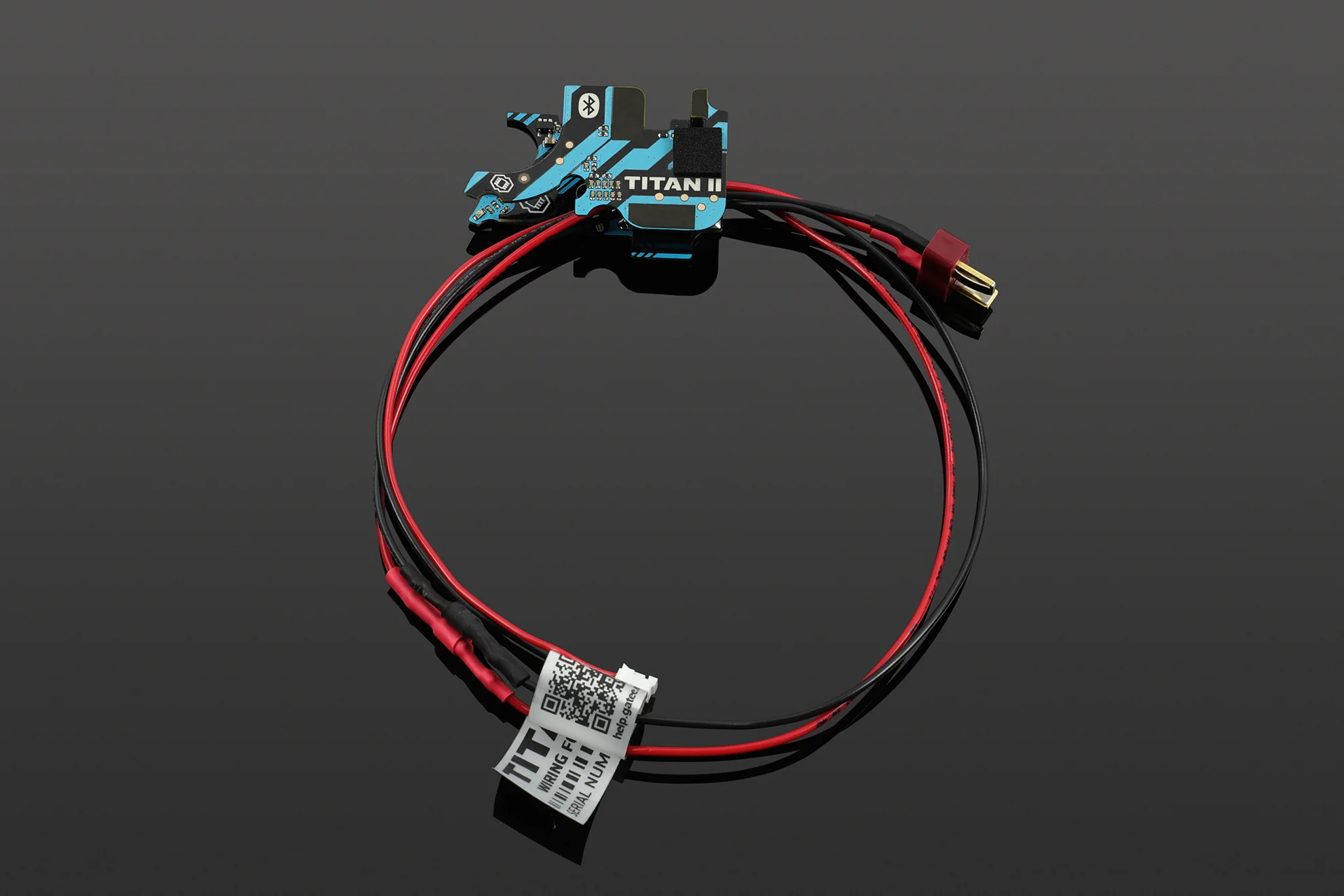

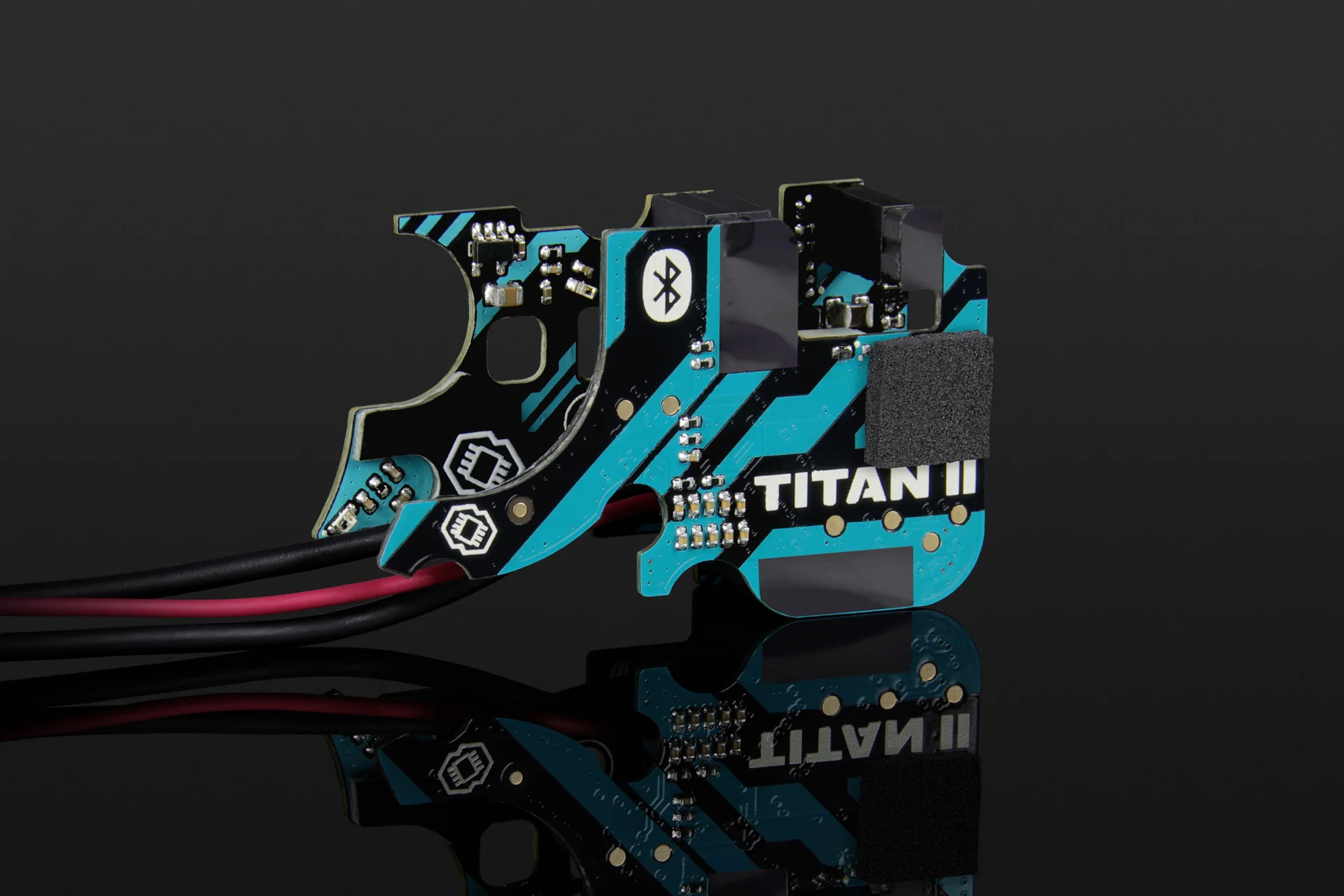

TITAN II Bluetooth® Expert for V2 GB

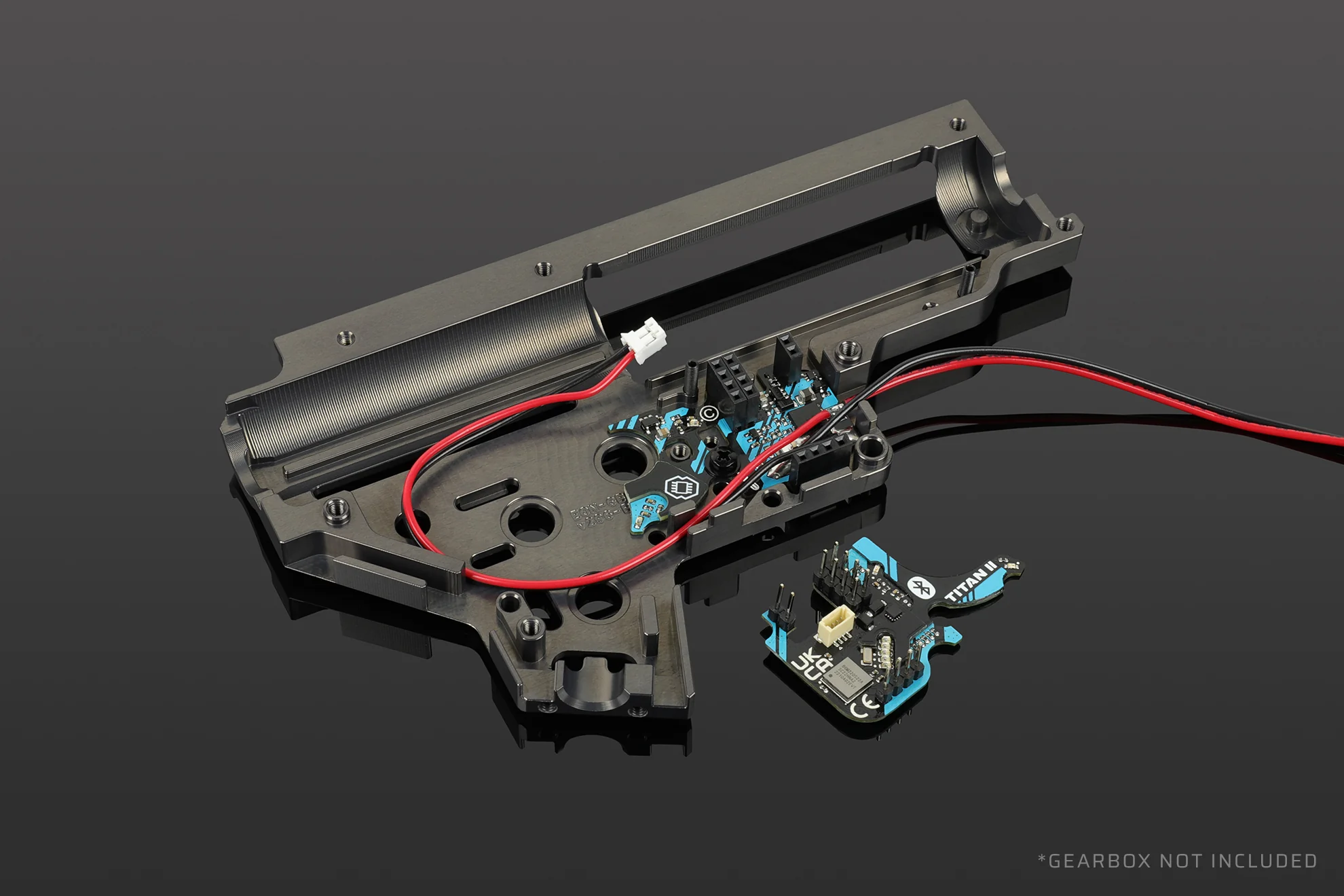

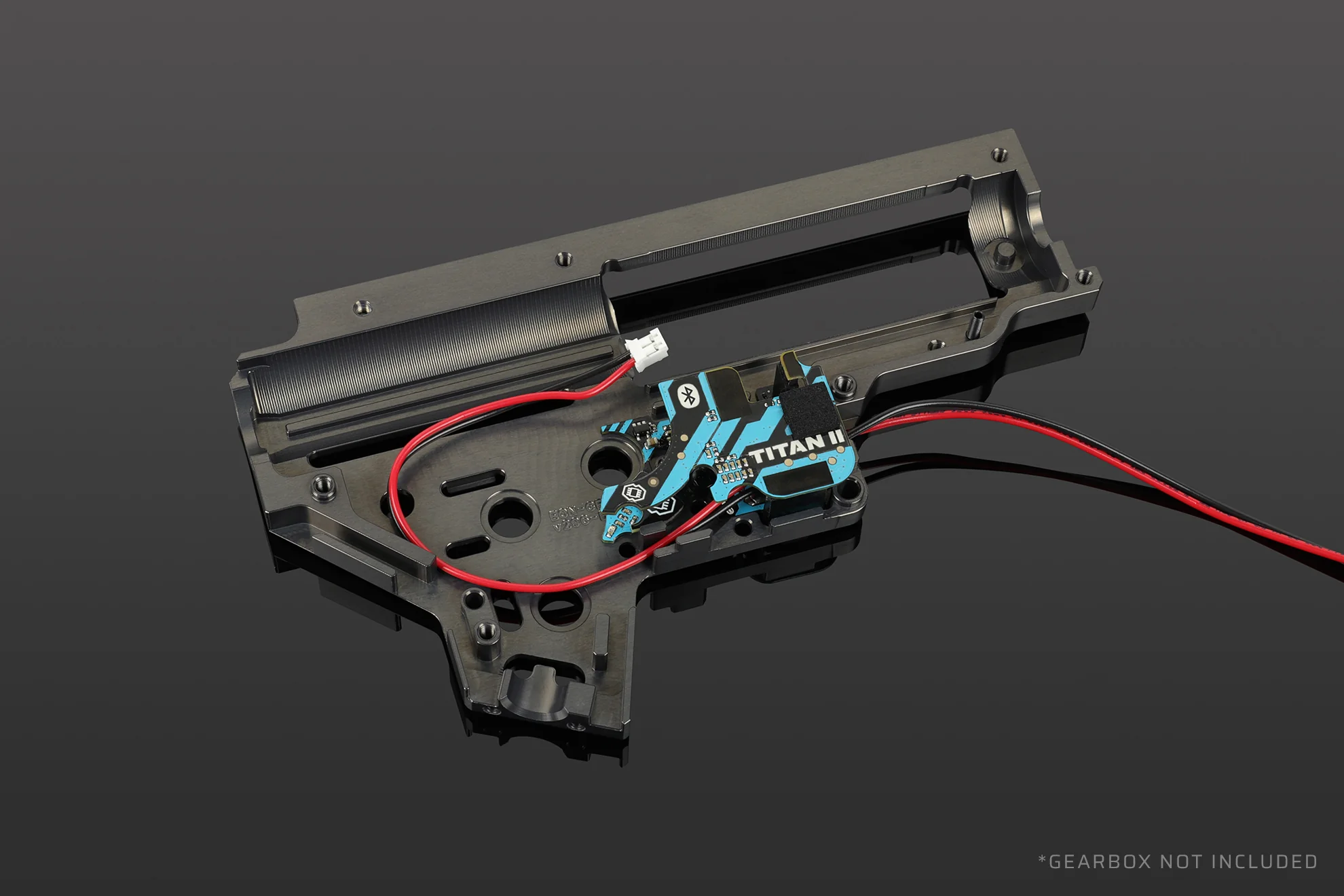

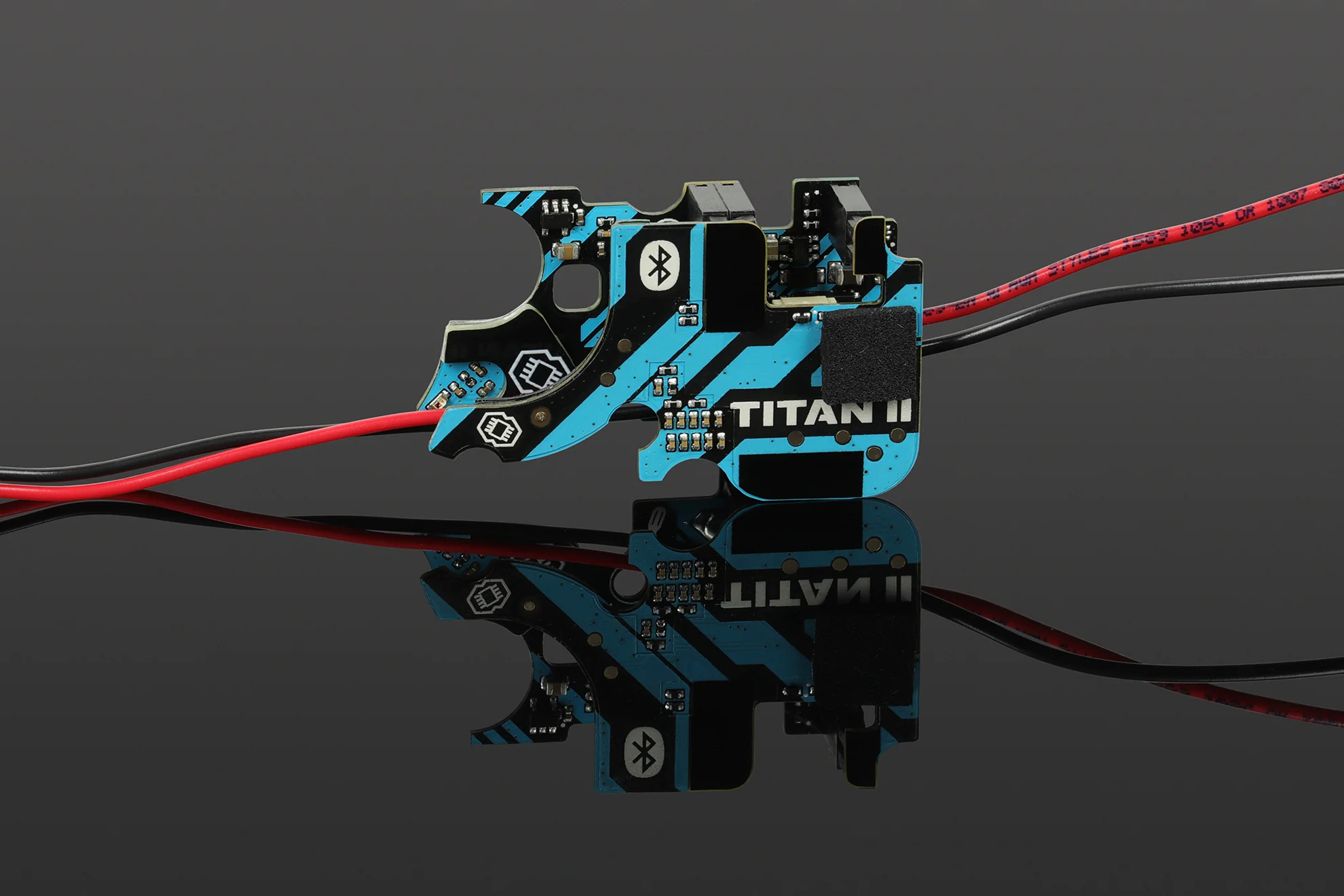

The brand-new TITAN II Bluetooth® for V2 GB is GATE’s flagship Electronic Trigger Unit (ETU). Featuring built-in Bluetooth® 5.2, it provides instant access to all TITAN II settings, AEG telemetry, and support for your smartwatch, STATUS, and future devices within the GATE Ecosystem.

The innovative gear sensor not only counts the gears but is also the first in the world to detect their direction of rotation. This enables the most precise cycle control currently available in AEGs.

The advanced optical trigger sensor allows you to configure an ultra-precise hair trigger, offering up to 50 sensitivity levels within the first millimeter of trigger travel, while retaining all the proven advantages of the TITAN V2 sensor.

The TITAN II Bluetooth® features a multifunction port for connecting additional accessories, such as:

• Bolt-catch sensor
• Magazine Sensor
• Tracer unit integrated into the hop-up chamber
• And more

Specifications

TITAN II Bluetooth® [AEG]

• Supply Voltage: 3.75 – 17 VDC
• Rated Current: 30 A
• Current Consumption: 27 mA
• Low Power Mode: 100 µA
• Connectivity: Bluetooth® 5.2 Low Energy
• Dimensions: 47.2 x 28.9 x 14.5 mm
• Weight: 28.2 g
• Operating Temperature: -15°C tot +50°C
• Relative Humidity: ≤ 80%
• Programmable power output with eFuse
• Support for connecting accessories such as a hop-up tracer unit and electric magazines.

TITAN II Bluetooth® [HPA]

• Supply Voltage: 5 – 8.6 VDC
• Rated Current: 10 A
• Current Consumption: 27 mA
• Low Power Mode: 100 µA
• Connectivity: Bluetooth® 5.2 Low Energy
• Dimensions: 47.2 x 28.9 x 14.5 mm
• Weight: 18 g
• Operating Temperature: -15°C tot +50°C
• Relative Humidity: ≤ 80%
• Programmable power output with eFuse
• Support for accessories such as hop-up tracer units and electric magazines

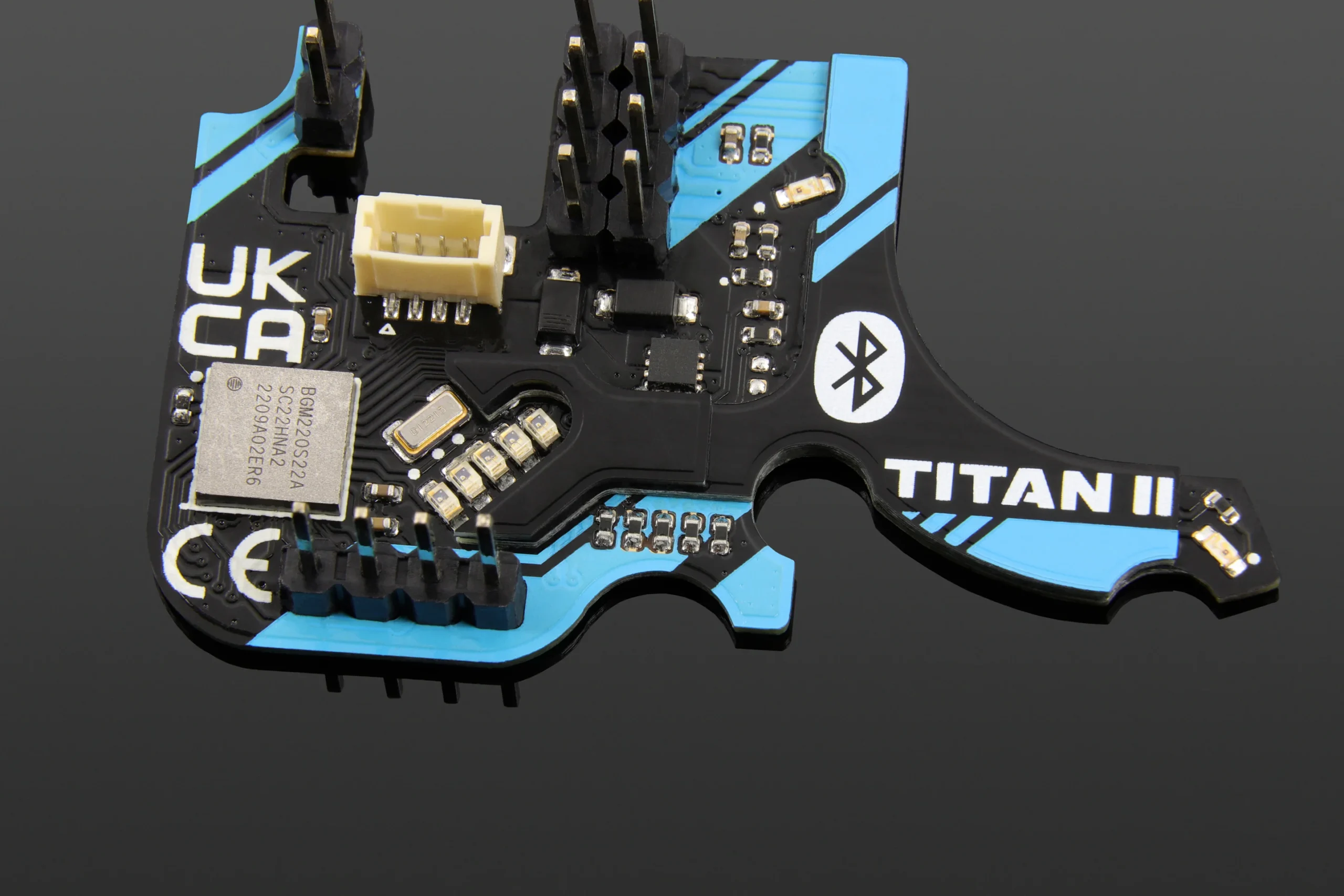

2× Multifunction Ports

Connect additional accessories such as:

• Bolt-catch
• Magazine Sensor
• External trigger and selector sensors

Compatible Accessories

• Power Cable (for GEL BLASTER / electric magazine / tracer unit)
• Single-Solenoid HPA Cable
• Dual-Solenoid HPA Cables
• Splitter for connecting multiple accessories (1× power cable + 2× I/O cables)
• Universal I/O Cable for up to 2 DIY accessories (bolt catch, magazine sensor, flashlight)
• Bolt Catch with Button and Cable (Plug & Play)
• Magazine Sensor with Cable (Plug & Play)

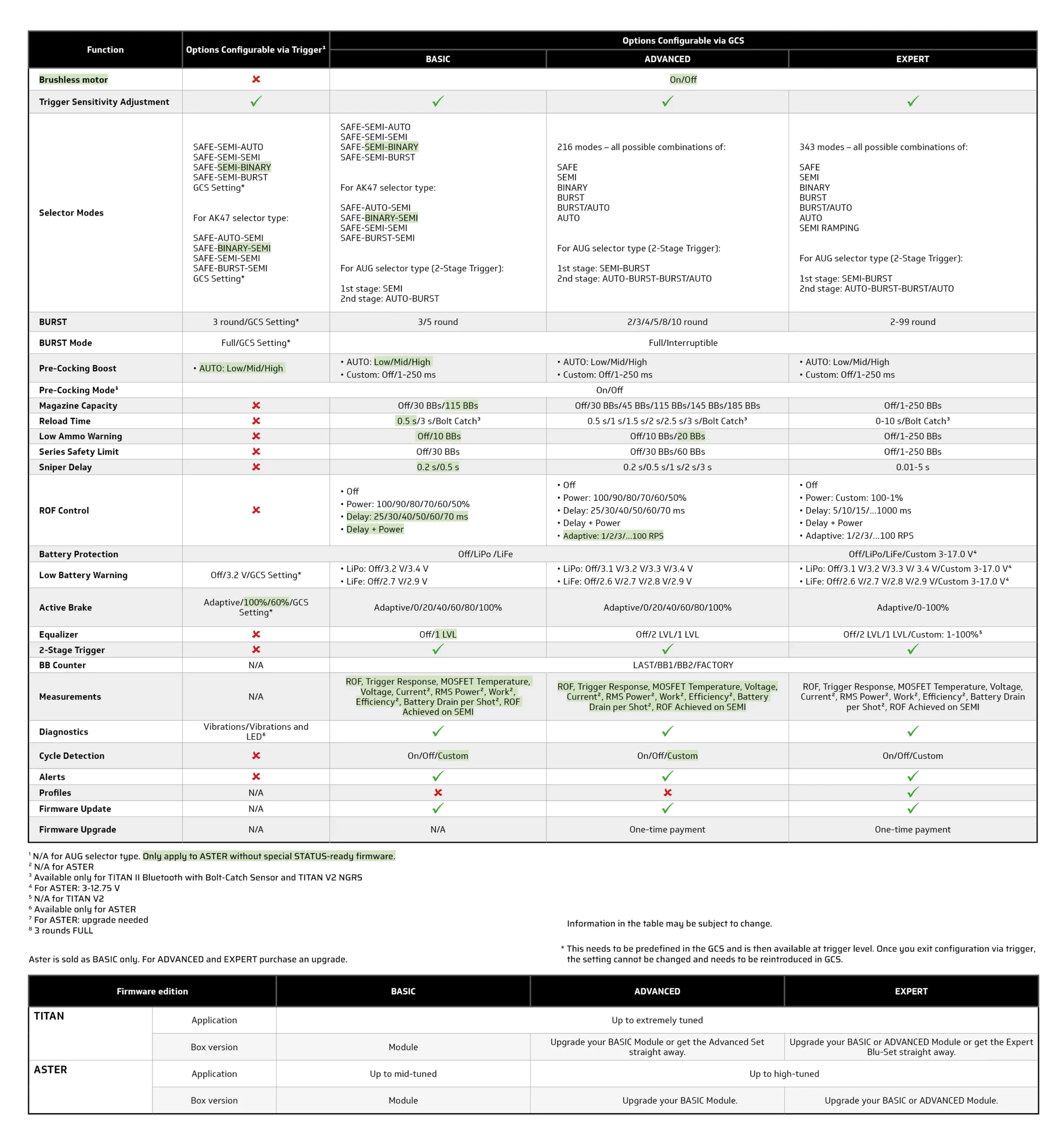

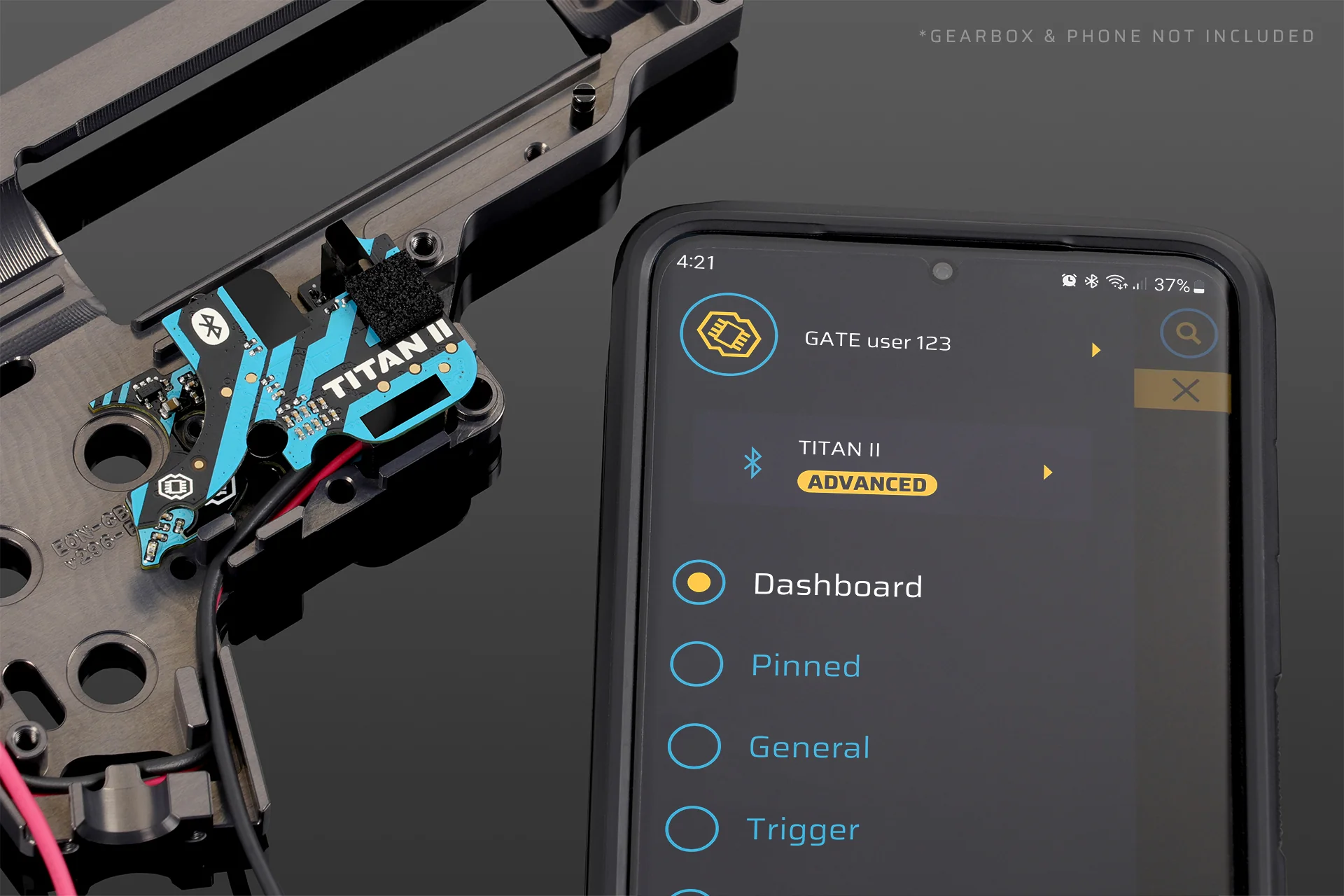

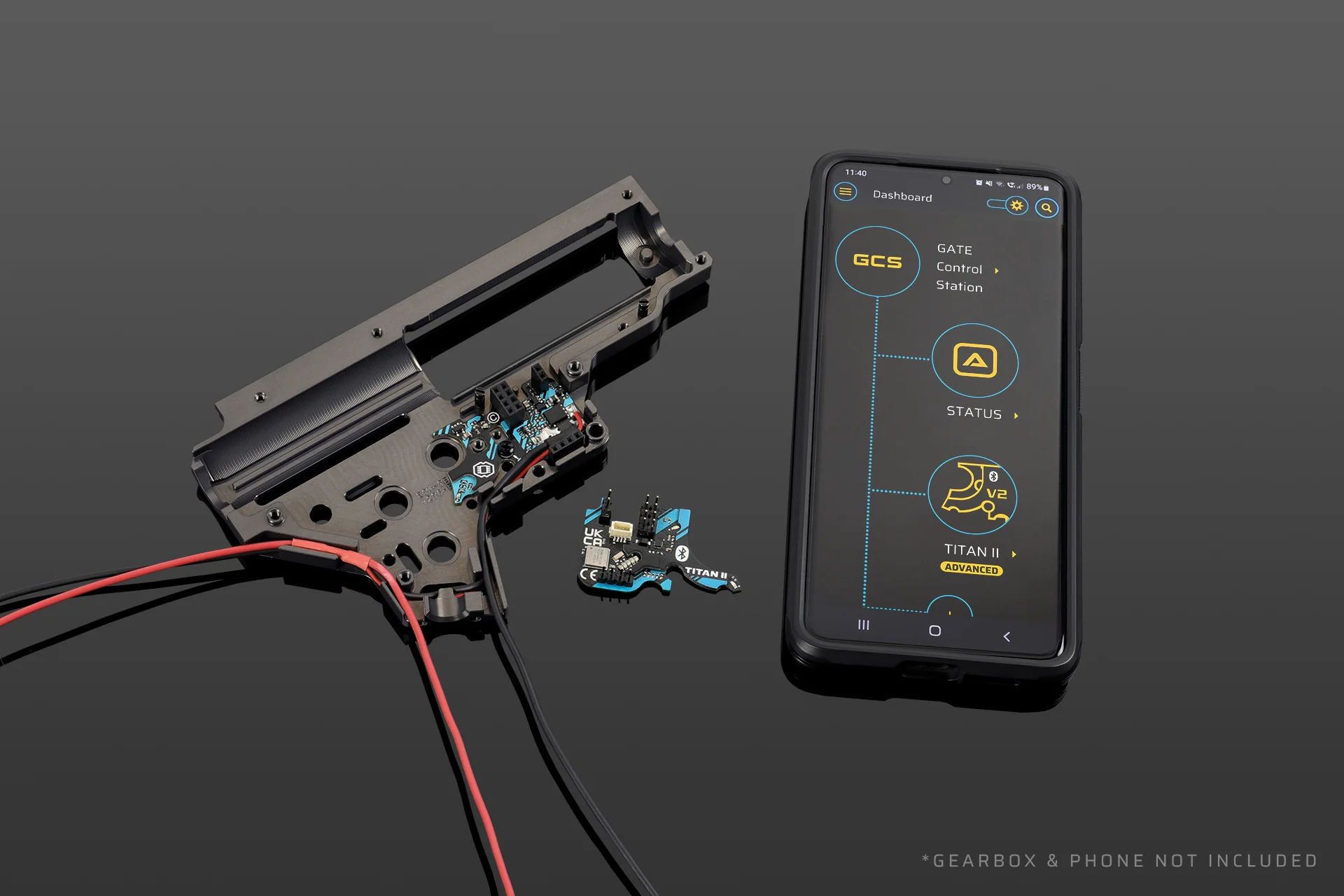

Full control via the GCS App

Connect your TITAN II Bluetooth® directly to the GCS App and gain complete control over your AEG:

• Control your replica via iOS, Android, macOS, or Windows
• Adjust trigger sensitivity precisely to your preference
• Use automatic Pre-Cocking for a realistic trigger response
• Explore ROF Control, Magazine Simulation, and dozens of other advanced features
• Update and upgrade firmware
• Monitor BB counters and real-time telemetry data
• Perform diagnostics and generate reports
• Use Virtual STATUS on smartwatches and smartphones
• Realistic reload sequence thanks to bolt-catch and magazine sensors.
